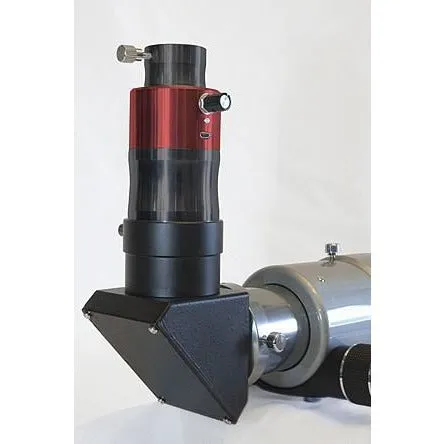

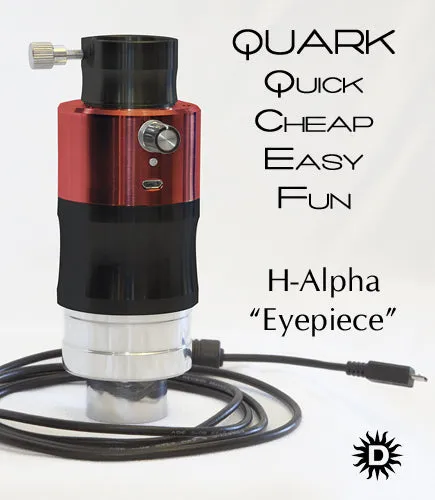

QUARK Prominence Filter

Take you solar viewing to the next level with Daystar’s Quark Prominence filter. This all-in-one design combines components of a telecentric barlow, snouts and adapters, into one compact, research-grade hydrogen alpha filter. Just insert in the Quark, add an eyepiece, plug it in, and view both prominences and surface details!

The fully optimized design eliminates the need for any adapters with its combined-in-one lightweight, eyepiece-sized assembly. There is even reduced power consumption, so you can study or enjoy solar activity all day. (small, official Daystar Filters a palm-sized battery pack sold separately)

Our Recommendations:

• ***If you are planning to use your Quark for off-axis applications, please see the COMBO Quark for that purpose.
• The Daystar Quark Prominence model is optimized for prominence viewing. If you are interested in primarily viewing surface (chromosphere) detail, we recommend the (same price!)
• The Daystar Quark filters perform the best with F/4 - F/9 refractors. In those ranges, the user will not need to worry about configuring their Quark.

Includes:

• Daystar Quark Prominence Filter
• 90-240VAC wall adapter with international plug adapters.
• Convenient twist-case for safe, dust-free storage.
• 5-year warranty

Features:

• Contains a custom 4.2x telecentric barlow lens, baffled and fully optimized specifically for the Hydrogen Alpha wavelength (~656nm)
• Tuning knob allows wing shifting /- 0.5Å with detents at every 0.1Å
• Superior field flatness
• No aperture limitations. (Full disk viewing possible on refractors up to ~450mm)
• Integrated 12mm blocking filter
• Standard 1.25” eyepiece drawtube output (optional 2" and SCT accessories available, but not included)
• 1.25" or 2.0" combo eyepiece snouts (with safety indent slot) directly into your diagonal
• Eyepiece protection by utilizing brass compression ring.
• Uses USB power, 5v 1.5amp
• LED indicator for Power, Warming, Ready, Fault
