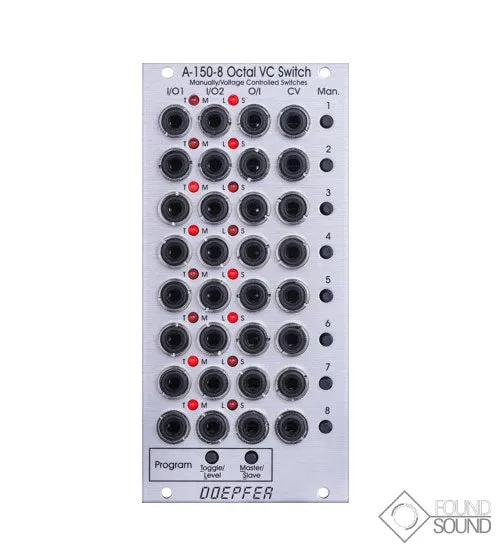

Module A-150-8 is a 12HP is a switching module that includes eight manual or voltage controllable electronic switches. Each of the 8 switches is equipped with a manually operable button (man.), A control voltage input (CV), a common output / input (O / I) and two inputs / outputs (I / O1, I / O2). Two LEDs indicate the currently active input / output. In addition, the LEDs are also used for programming. The switches are bidirectional, ie the functions of inputs and outputs are interchangeable. More info on programming is available on the .

Brand new with warranty.

Product Specs

• Item Number: 9055
• Make:
• Model:
• Condition:
• Finish: Silver
• Categories: ⇒
• Function:
• Made In: Germany
• MPN: A-150-8
• EAN: 4250711115081
• Modular Grid: Eurorack
• Dimensions*: 12 HP 55 mm deep
• Power*: 40 mA 12V 5 mA -12V 0 mA 5V

* User contributed details
