Product Details
+

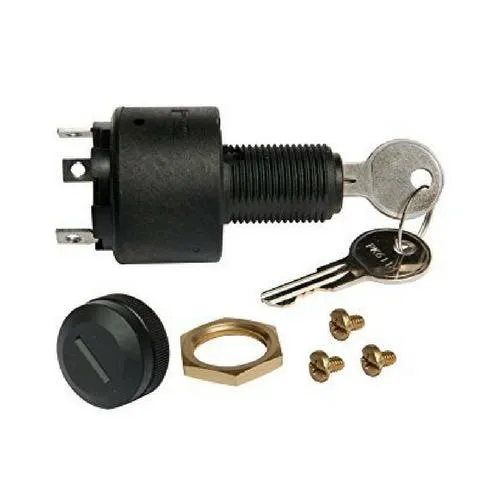

Marine grade glass-filled polyester switch with an inner seal between cylinder lock and contact plate providing ultimate protection against corrosion. Non-conductive housing eliminates potential shorts.
Specifications:3 position magneto off-run-start 15 amps at 12VDC ignition 30 amps at 12VDC solenoid 7 amps at 12VDC choke Terminal to power separately controlled choke circuit 23mm mounting hole 29mm panel thickness (max)
