Product Details
＋

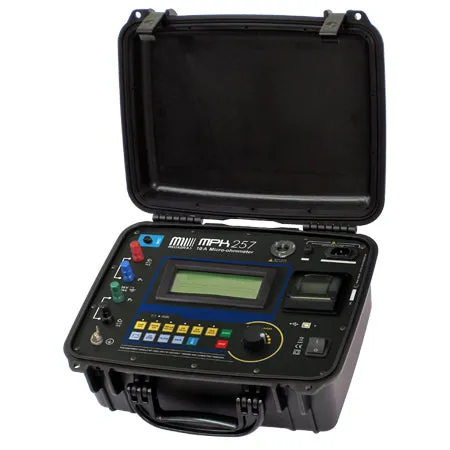

The MPK-257 digital very low resistance ohmmeter is a portable, microprocessor-controlled instrument used to accurately measure resistances of switches and circuit breaker contacts, transformer and motor windings, wire and cable samples, joints in busbars, etc., using test currents from 1mA up to 10 A.
KEY FEATURES
- Microprocessor controlled
- Temperature compensation
- Resolution: 0.1 µΩ
- Resistance reading: up to 2,000 Ω
- Direct reading (Up to 4½ digits)
- Up to 10 A current
- Powered by rechargeable battery
- Can be used to measure high inductive element
- Kelvin-type (4-wires) measurement
- Remote control through an Android app
Supplied with:
- 1 Combined current and potential leads set
- 1 Ground cable
- 1 Power cord (CSA approved AC Adapter will be supplied for Canadian customer)
- 1 USB cable.
- 1 external temp. probe
- 1 User guide.
- 1 MegaLogg-2 software
- 1 Case for the accessories.
Download:
Accessories:
|
PM3/4 FQ (10A) Set of two hand spikes with spring points (combined current and potential),one red and one black, U terminal, 1.8 m length. |
$485.00 | |
|
PM3/4 PB (10A) Set of two hand spikes with spring points (combined current and potential), |
$485.00 |
