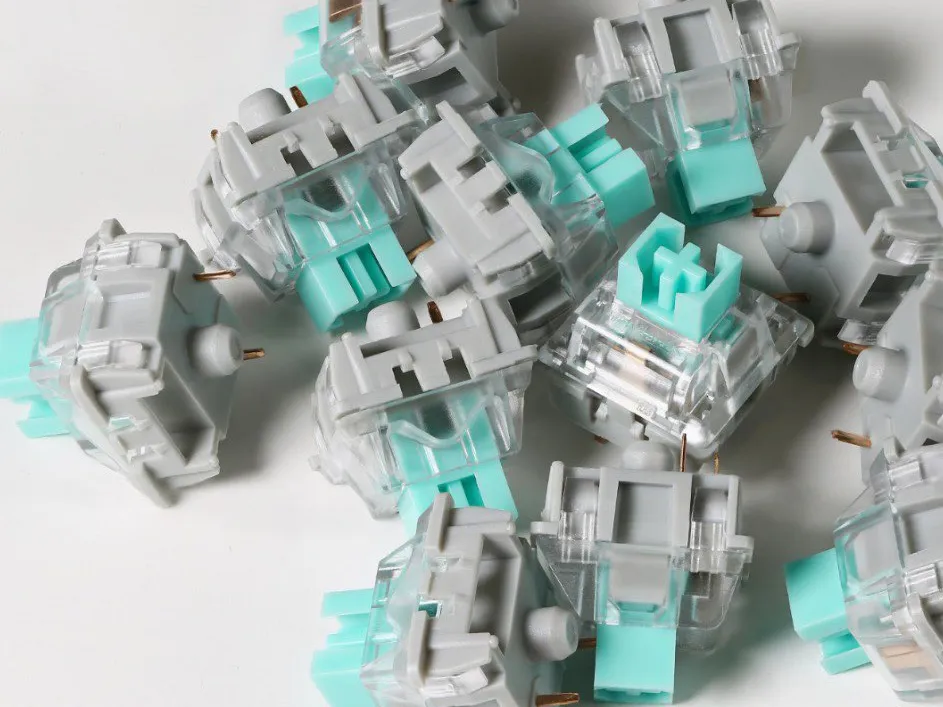

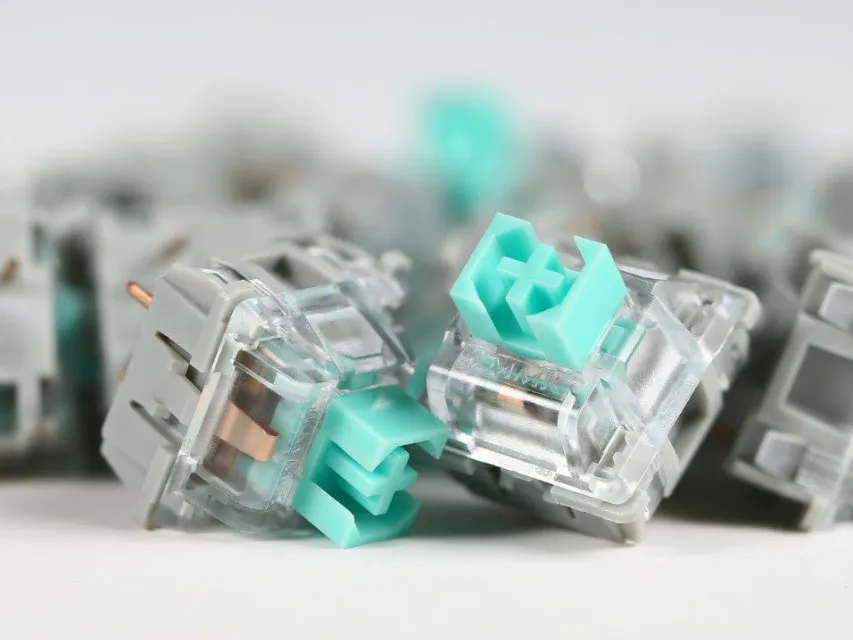

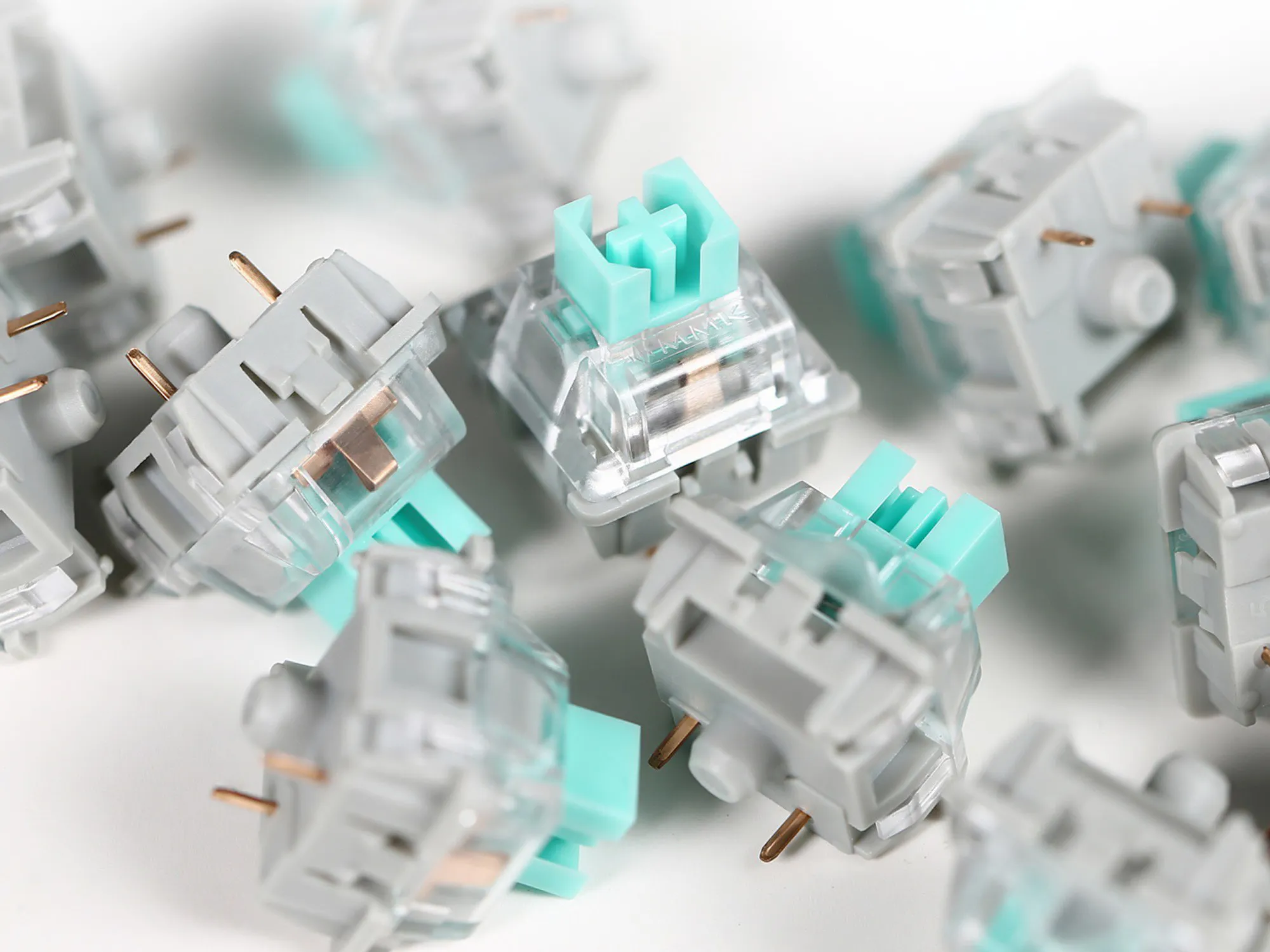

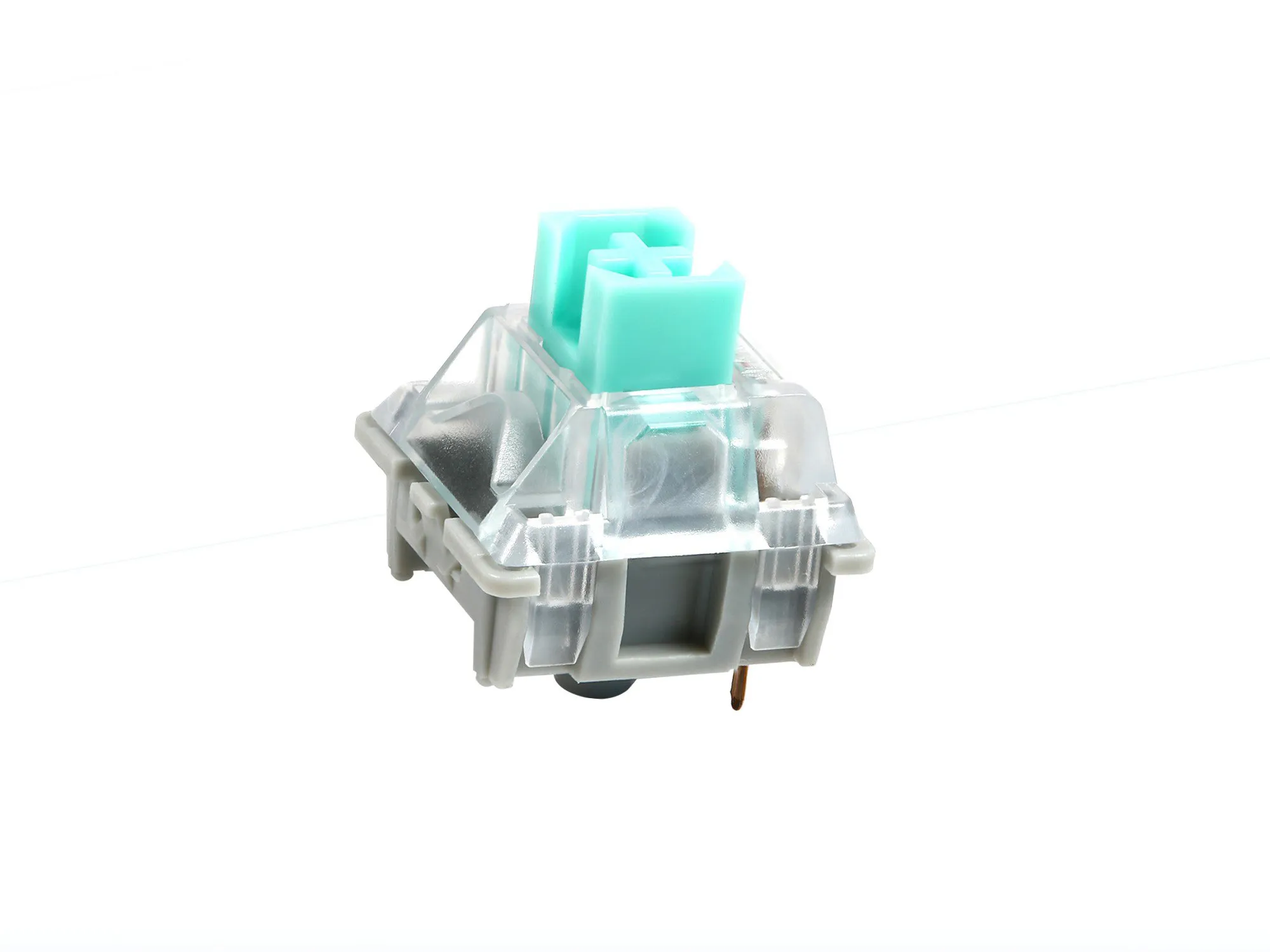

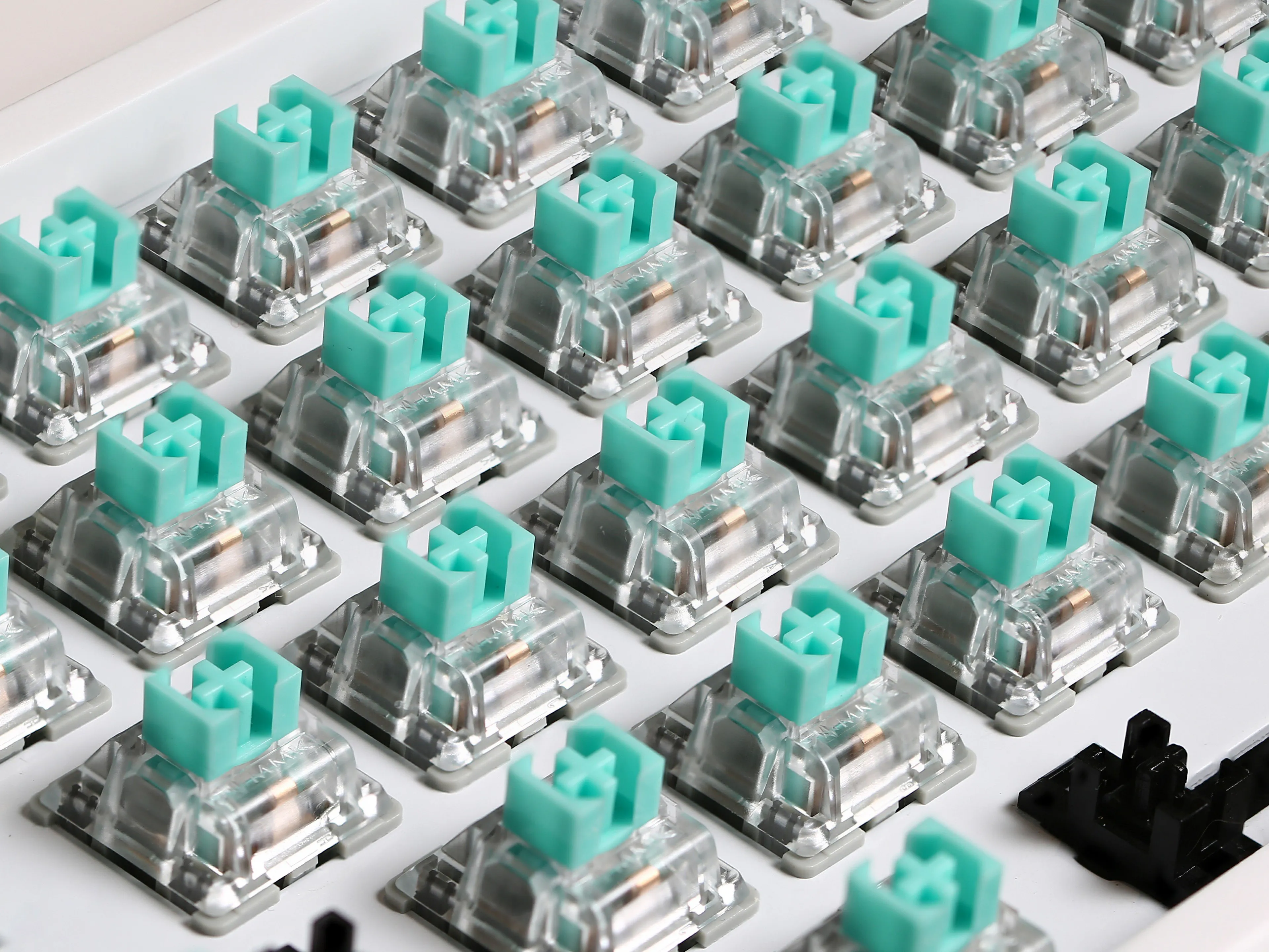

The FROG Keyswitch is a 56g operating force linear switch designed and manufactured by MOMOKA.

High Quality Materials

The use of American-sourced Dupont Material means these switches are manufactured with the highest quality. Tolerance between the Upper Housing and the Stem is accurately controlled to enhance the overall stability of the switch. The springs utilized in FROG switches are made of Japanese exported SUS304 Steel.

Pre-Lubricated

A complete lubication process is done with GP105 during the manufacture process of the FROG Switch. No additional lubing or modding needed! The lube additionally dampens the noise output of the switches, giving them a more muted and full sound.

Specs

• ​Linear Switch
• 10 switches per bag
• 3-pin / Plate mount

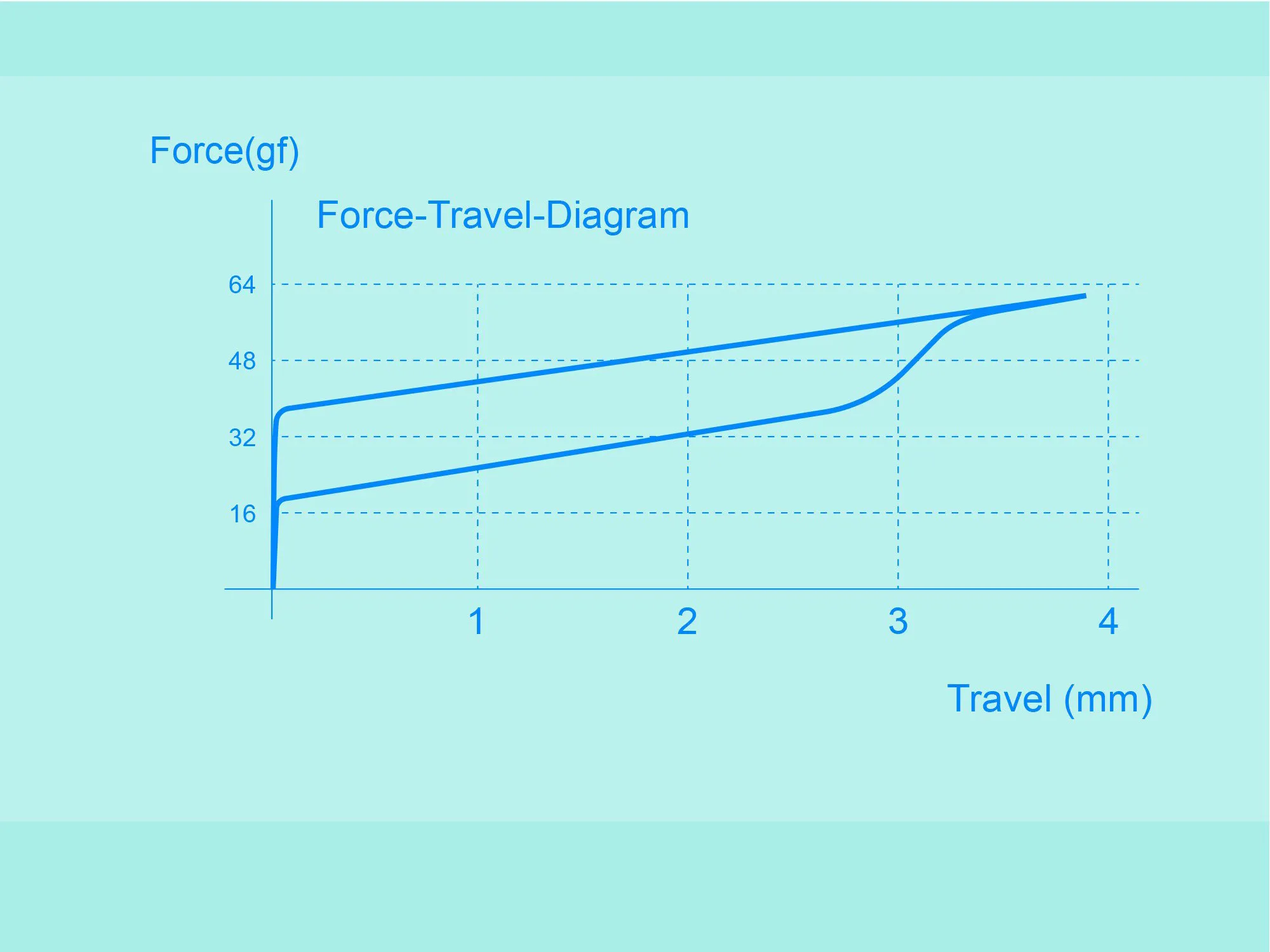

• Operating Force: 54cN
• Maximum Force: 62cN
• Total Travel: 3.70mm
• Pre-Travel: 2.50mm
• Durability: >50 million presses
• LED Compatibility: SMD, RGB
• Designed and Produced by Momoka

Material

PC (Upper Housing)
POM (Stem)
PA66 (Base)
SUS304 Steel (Spring)
CuSn4 (Contacts)
Greasing: GP105
